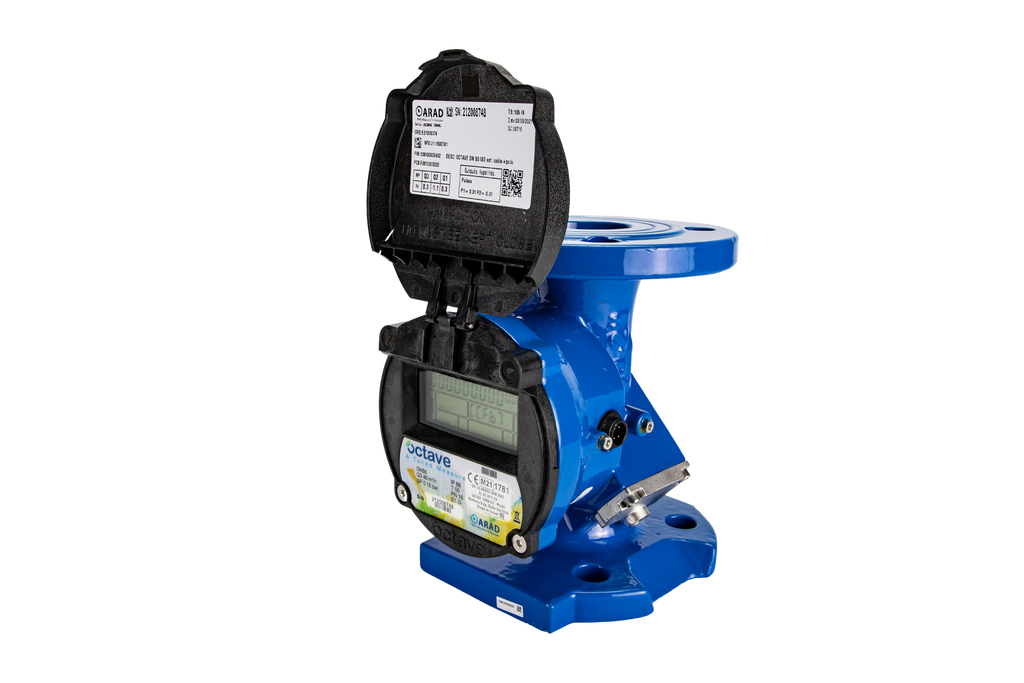

Octave Ultrasonic Cold Water Meter

The OCTAVE Ultrasonic Meters
A revolutionary, precise and ultra reliable ultrasonic bulk water meter with no moving parts.
With superior hydraulic and batteries that last up to 15 years, the Octave is today’s best choice for bulk meters.
• Applications
Utilities, Waterworks, Industrial and Agricultural applications
• Available Sizes
DN50-DN300 (2”-12”) with cast iron body
DN40 and DN50 (1½”-2”) with polymer body
DN50- DN200 (2”-8”) with stainless steel body
• Standards
MID 2004/22/EC (based on OIML R49 EN 14154 and ISO 4064:2005)
AWWA
WRAS
NSF
ACS
• Construction
Cast Iron - epoxy coated
Optional: SS316 for sizes 2”- 8” (DN50- DN200, only AWWA standard)
or Highly Reinforced Polymer for 1½” and 2” (DN40 and DN50, only threaded version)
All external bolts and nuts are made of stainless steel.
The size of the meter and the direction of flow are cast in raised letters on the outer surface of the case.
