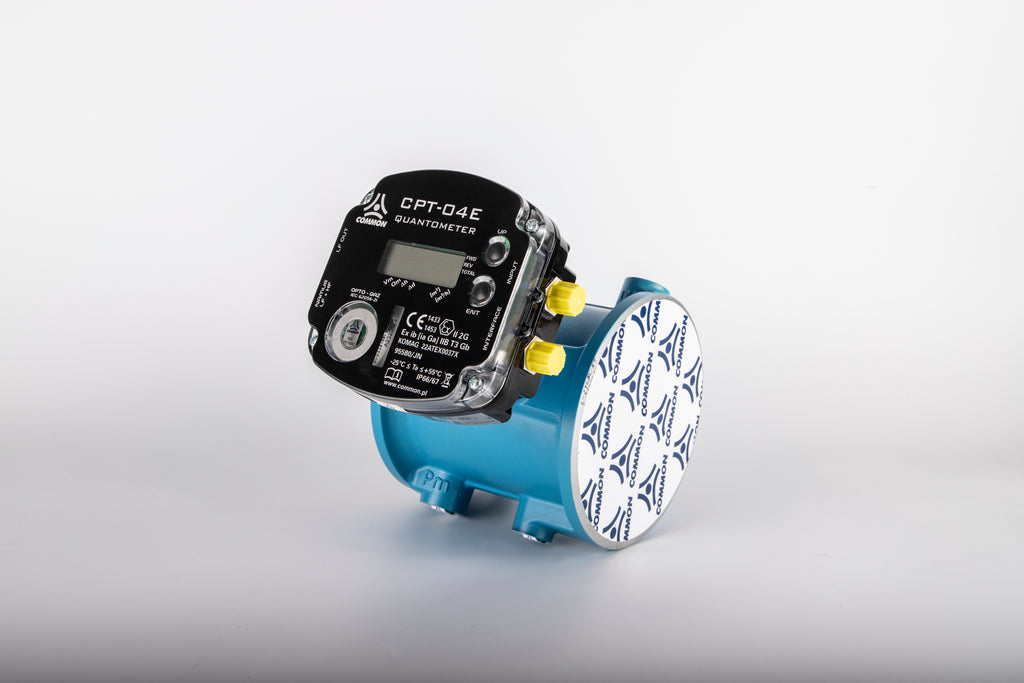

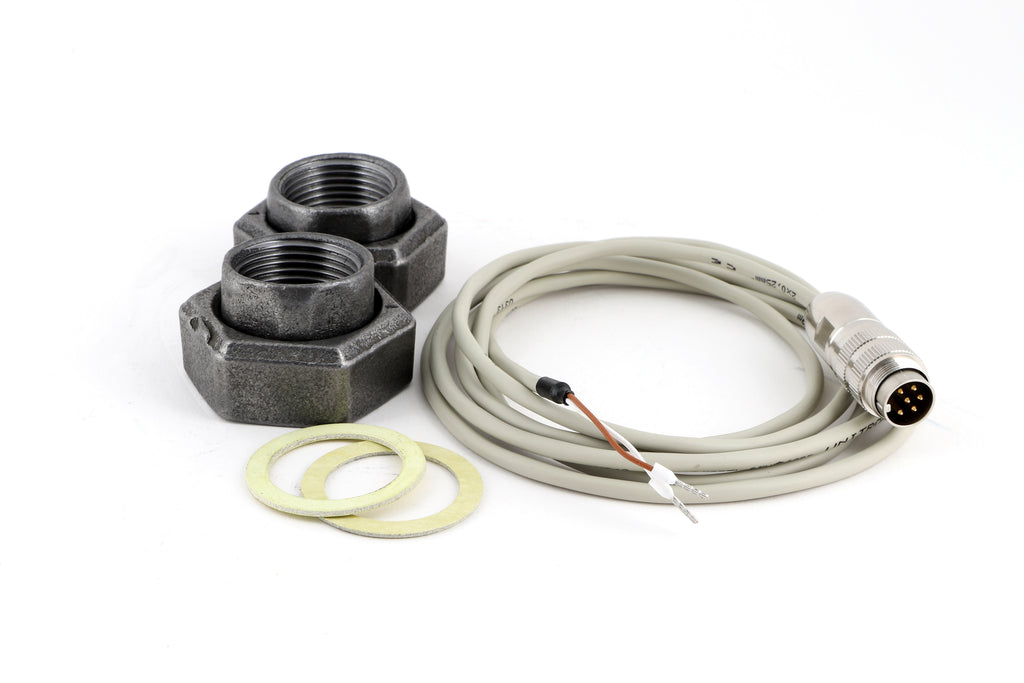

CPT-04M Quantometer

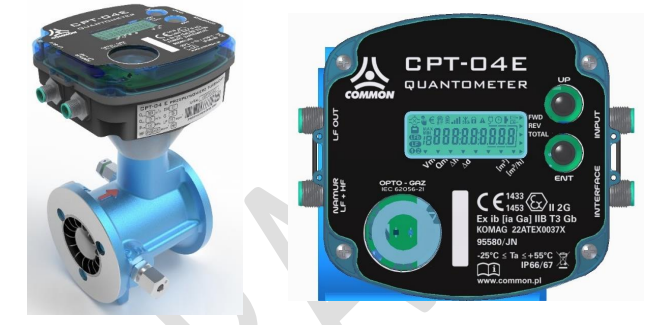

The CPT-04 E Quantometer (Turbine Flow Meter) has a modular construction which combines modern electronics and proven mechanical solutions.

Measurement data security, measurement continuity and self-diagnostics are ensured by two redundant tracks of hardware sensors and counters, each with an independent battery backup, while LCD runs on separate third battery.

Gas volume measurement is carried out using a precise mechanical system and electronic non-contact sensors. The design of the device allows it to be equipped with one of the many available versions of the communication interface. Electronic systems ensure high accuracy and resolution of the flow measurement (based on internal HF signal). Information on volume, flow and measurement history can be accessed directly on the LCD. The basic functions of the device are operated using two buttons. The standard equipment of the CPT-04 E includes LF and HF pulse outputs and configurable OUT outputs. The communication interface facilitates the integration of the Quantometer (Turbine Flow Meter) with SCADA and BMS systems.

Features & Benefits
Size: DN25 G40 to DN150 G1000
9 – digit LCD
LF and HF outputs (standard)
Interfaces (special version):4-20mA, or RS-485, or M-Bus, or ENCODER;
Data reading protocols: Modbus,GazModem, M-Bus
High accuracy and resolution of flow measurement
Flow direction detection
Flow profile and alarms register
Hourly gas consumption watchdog

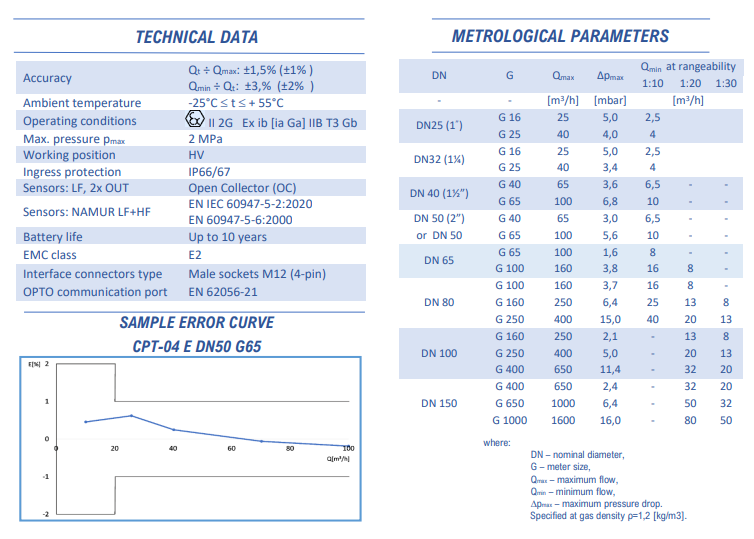

Technical Data
Accuracy
Qt ÷ Qmax: ±1,5% (±1% )
Qmin ÷ Qt: ±3,% (±2% )
Ambient temperature -25°C  t  + 55°C
Operating conditions II 2G Ex ib [ia Ga] IIB T3 Gb
Max. pressure pmax 2 MPa
Working position HV
Ingress protection IP66/67
Sensors: LF, 2x OUT Open Collector (OC)
Sensors: NAMUR LF+HF EN IEC 60947-5-2:2020
EN 60947-5-6:2000
Battery life Up to 10 years
EMC class E2
Interface connectors type Male sockets M12 (4-pin
